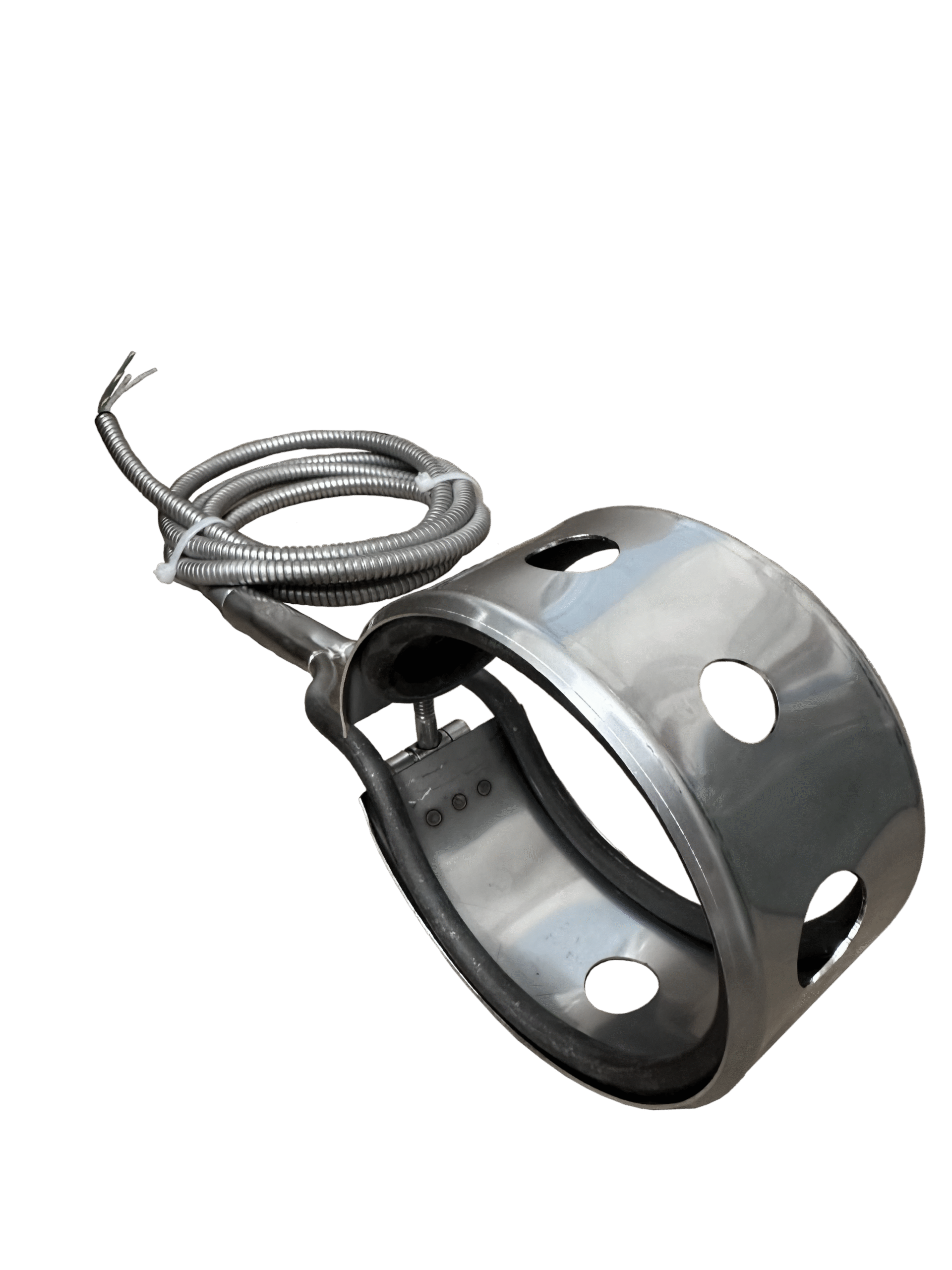

Tubular Band Heaters

Tubular Band Heaters

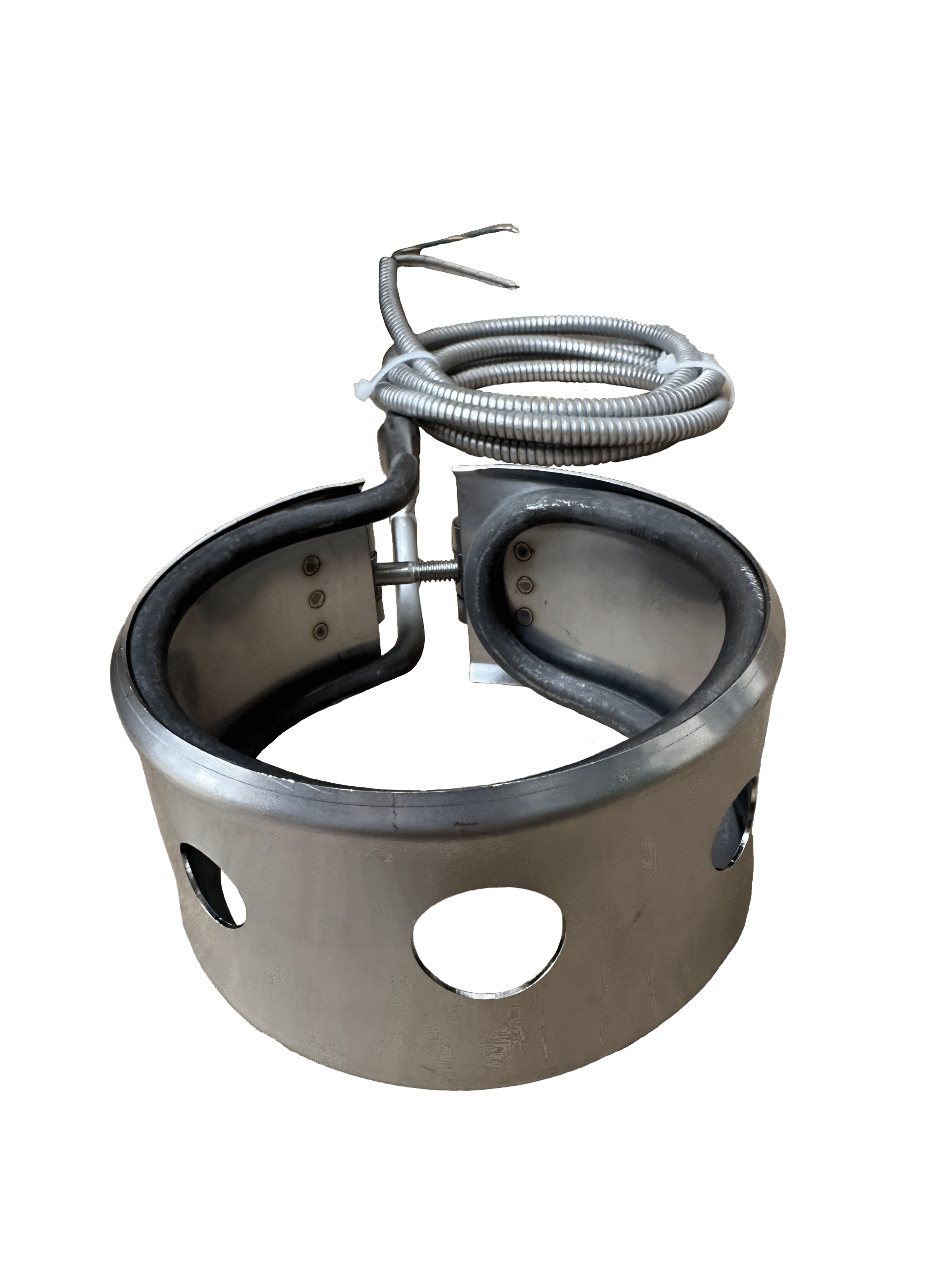

Tubular Band Heaters - Image 2

Tubular Band Heaters

For equipment with unique dimensions or heating requirements, tubular band heaters offer durable, uniform heat transfer with flexible configuration options. Best utilized in applications where contaminants like water, oil or liquid plastic are present. Available in a variety of diameters, watt densities, and terminal options to meet specific process requirements.

  • Operating Temp: Up to 1200°F
  • Designed for narrow areas (1½″ wide or less) and bolt clearance zones
  • Contamination-proof with armored lead options
  • Ideal for air-cooled and high-cycle extrusion processes
Request a Quote

Applications

  • Narrow areas (1½″ wide and less) where concentrated heat is required
  • Mounting areas with bolts or holes in the heated cylinder
  • Air-cooled cylinders
  • Areas exposed to contamination where sealed heater and cable connections are essential
  • Dies and front-end heat in extrusion processes

Features

  • Contamination-proof construction
  • Long service life under tough conditions
  • Ideal for narrow heaters with bolt clearance
  • High efficiency and uniform heating

Design and Construction

  • Size: ID (minimum .75”), Width (minimum .5”)
  • Electrical: Watts, Volts- Ideal Watts per Square Inch 35 or less, 3 Phase
  • Lockup: Flange, Extended Flange, Strap, Key, Barrel Nut, Compression Springs, Quick Release Latch
  • Mechanical: Add Holes, Notches, Built in Thermocouple or Thermowell
  • Lead Options: Flexible Fiberglass Leads, Armored Cable (BX), Braided Wire
  • Other Power Supply Options: Screw Terminals (with or without ceramic caps), Plug, Housin
Applications
  • Narrow areas (1½″ wide and less) where concentrated heat is required
  • Mounting areas with bolts or holes in the heated cylinder
  • Air-cooled cylinders
  • Areas exposed to contamination where sealed heater and cable connections are essential
  • Dies and front-end heat in extrusion processes
  • Contamination-proof construction
  • Long service life under tough conditions
  • Ideal for narrow heaters with bolt clearance
  • High efficiency and uniform heating
  • Size: ID (minimum .75”), Width (minimum .5”)
  • Electrical: Watts, Volts- Ideal Watts per Square Inch 35 or less, 3 Phase
  • Lockup: Flange, Extended Flange, Strap, Key, Barrel Nut, Compression Springs, Quick Release Latch
  • Mechanical: Add Holes, Notches, Built in Thermocouple or Thermowell
  • Lead Options: Flexible Fiberglass Leads, Armored Cable (BX), Braided Wire
  • Other Power Supply Options: Screw Terminals (with or without ceramic caps), Plug, Housin
Request a Quote
